Complete Aluminum Skid Plate Kit — VW Touareg (2002–2010)
Underbody armour in 5 mm 7075 aluminum alloy — serious protection without the weight of steel. Available as the core underbody set, or as the full build with our 50 mm steel side steps and side skid plates included. Direct bolt-on to factory points.
Choose Your Package

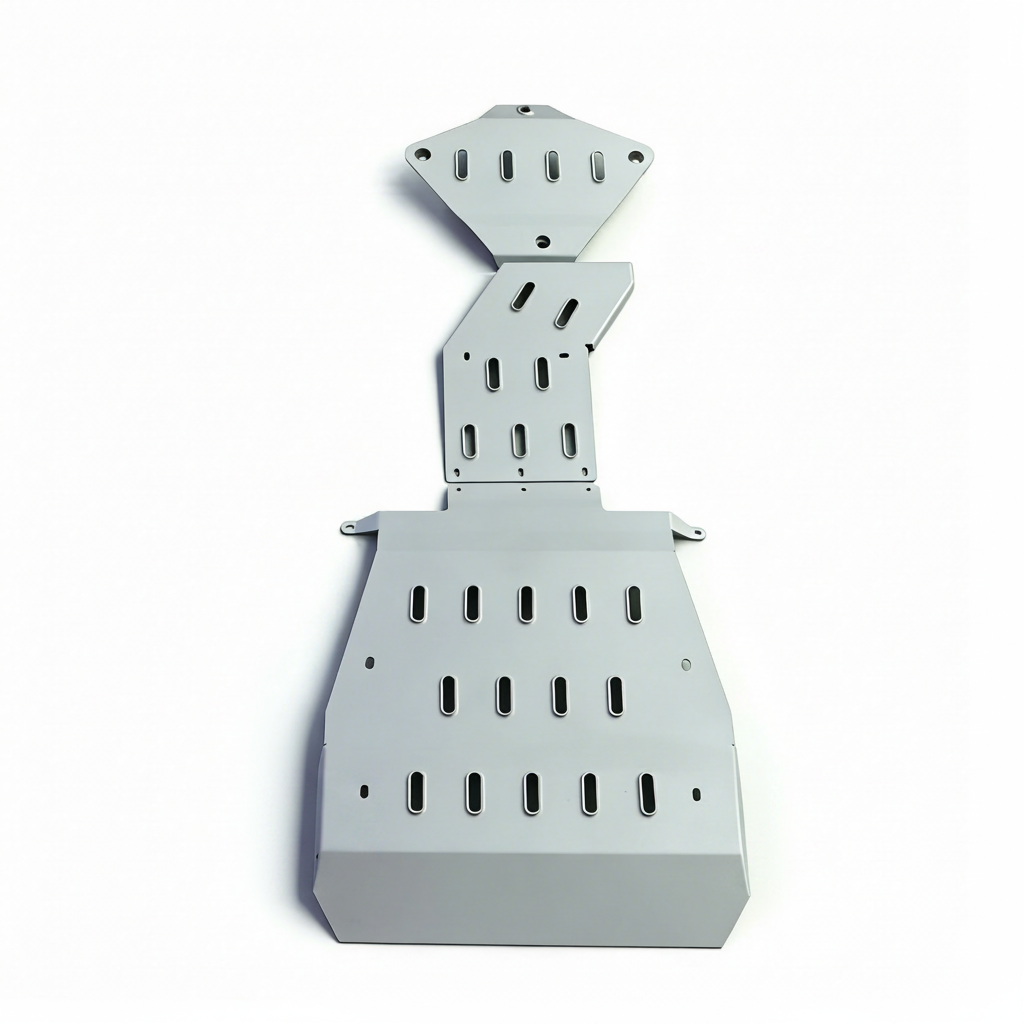

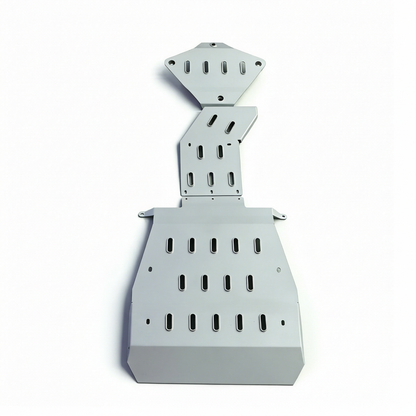

| Set 1 | Engine and transfer case protection, plus the rear differential plate |

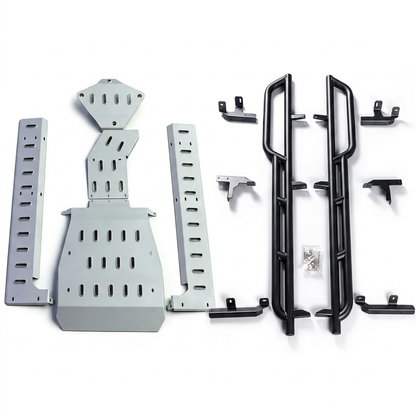

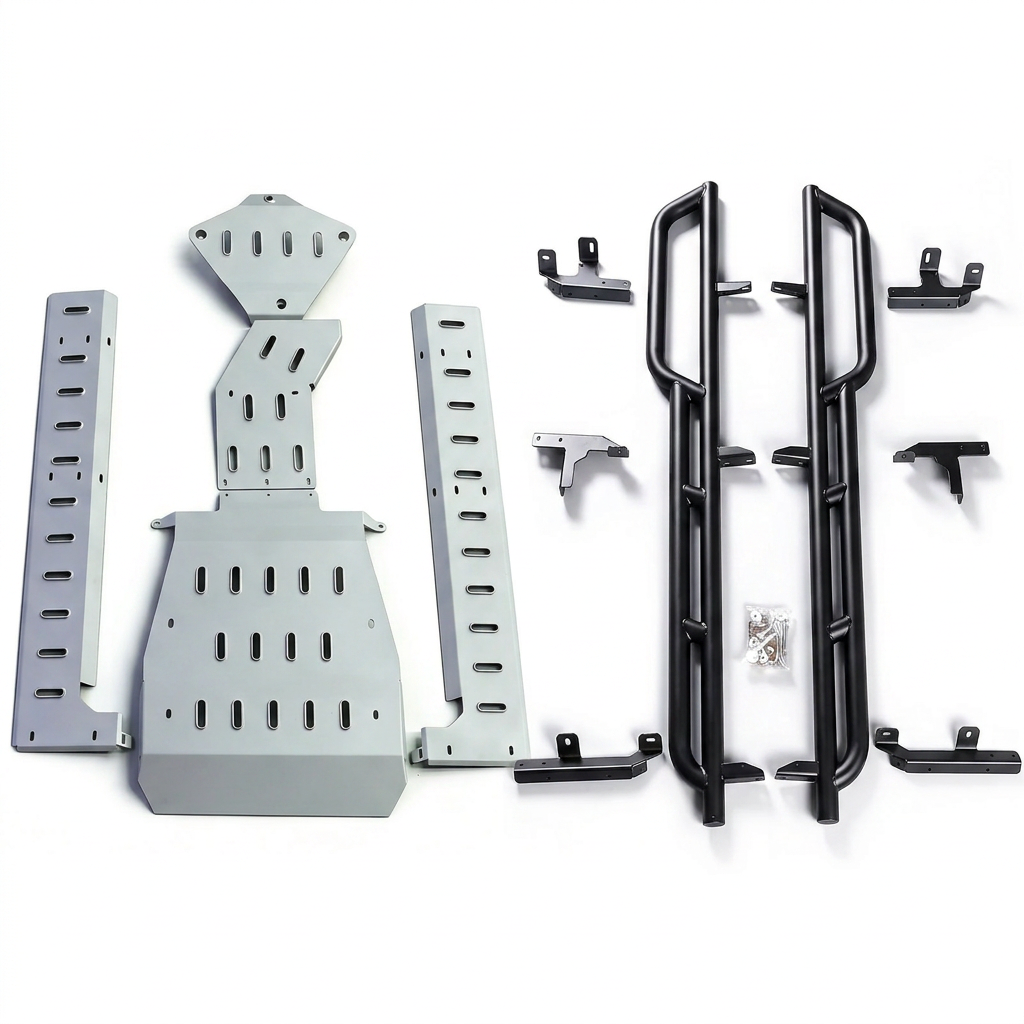

| Set 1 + Side Steps | Everything in Set 1, plus our Touareg off-road side steps (50 mm manganese steel tube) and side skid plates for both sides |
Specifications
| Skid plate material | 7075 aluminum alloy |
| Skid plate thickness | 5 mm |
| Side steps (Set 2 only) | Manganese steel, 50 mm tube diameter |
| Finish | Silver e-coating (skid plates), e-coating (side steps) |
| Mounting | Factory underbody points — fully reversible |
| Also available | Manganese steel kit (3 mm, harder — includes fuel tank plates) |
Key Features
- 7075 aluminum alloy skid plates — high strength at reduced weight compared with steel
- Covers the engine, transfer case, and rear differential — the most vulnerable underbody components
- Larger package adds 50 mm steel side steps and side skid plates for full rocker protection
- Direct bolt-on using factory mounting points
- Corrosion-resistant e-coat finish throughout
- Lower combined price than buying the pieces separately
- Fully reversible installation
Fitment
- Volkswagen Touareg Gen 1 (2002–2010)
Installation & Maintenance
- Difficulty: Beginner-friendly
- Time: A single afternoon for the full kit, with the vehicle on a lift or ramps
- Tools: Basic socket set, torque wrench
- Cutting / drilling / welding: None required
- Servicing: Plates come off individually for oil changes and underside maintenance
Frequently Asked Questions
What is the difference between the two packages?
Set 1 covers the engine, transfer case, and rear differential in 5 mm aluminum. The larger package adds our Touareg off-road side steps — 50 mm manganese steel tube — plus side skid plates for both sides, giving full rocker panel protection as well as underbody coverage.
Are the side steps aluminum or steel?
The side steps are manganese steel with 50 mm tube, the same units we sell separately for the Touareg. The underbody skid plates are 5 mm aluminum.
Does this kit include fuel tank plates?
No — the aluminum kit covers the engine, transfer case, and rear differential. If you want fuel tank protection as well, our manganese steel kit includes plates for both fuel tanks.
Aluminum kit or manganese steel kit?
Aluminum is lighter and well suited to overlanding, fire roads, and moderate off-road use. Manganese steel work-hardens on impact and is the better choice for serious rock crawling.
Will this kit fit my Touareg?
Yes — fits the Volkswagen Touareg Gen 1 (2002–2010).
